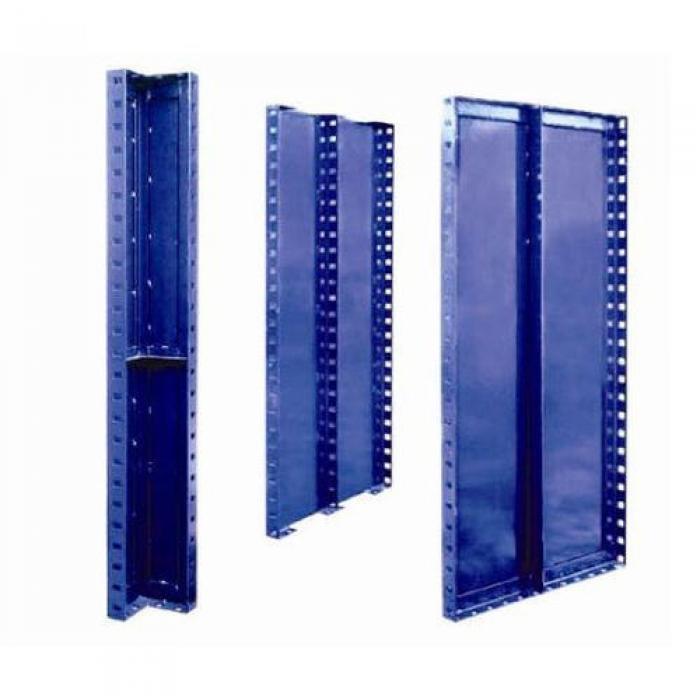

Wall Form Economy panel

• Economy panels are today's most advanced multi-purposed formwork system because:
• Stiffeners are built into the panel, therefore only two scaffold tube or channel wafers are required for alignment.
• Minimum champs required.
• Rapid assembly with wedge sets
• Can easily be erected by unskilled labour.
• Accommodates any tie system.
• Durable steel face plate cannot be damaged by vibrators or penetrated by the reinforcing steel.
• The automatic precision on assembly results in 100% dimensional accuracy of the finished concrete

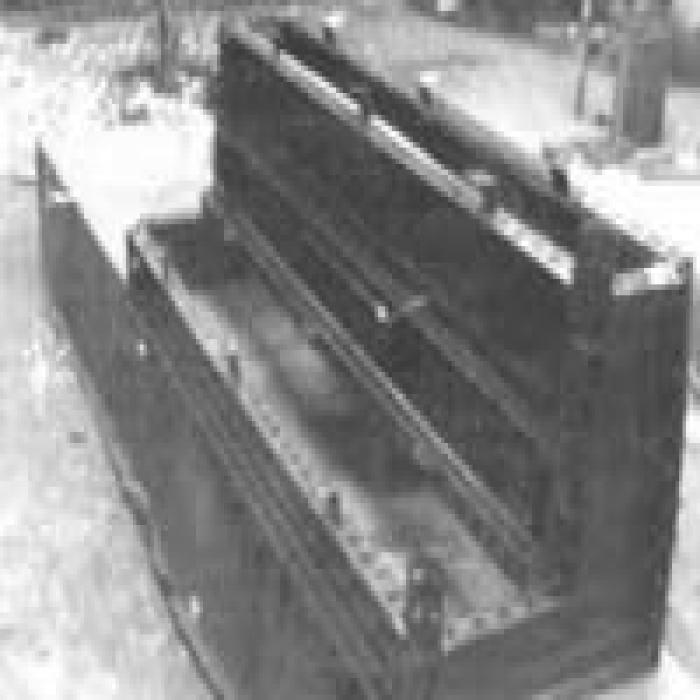

Purpose Made Form-Work-Crash-Barrier

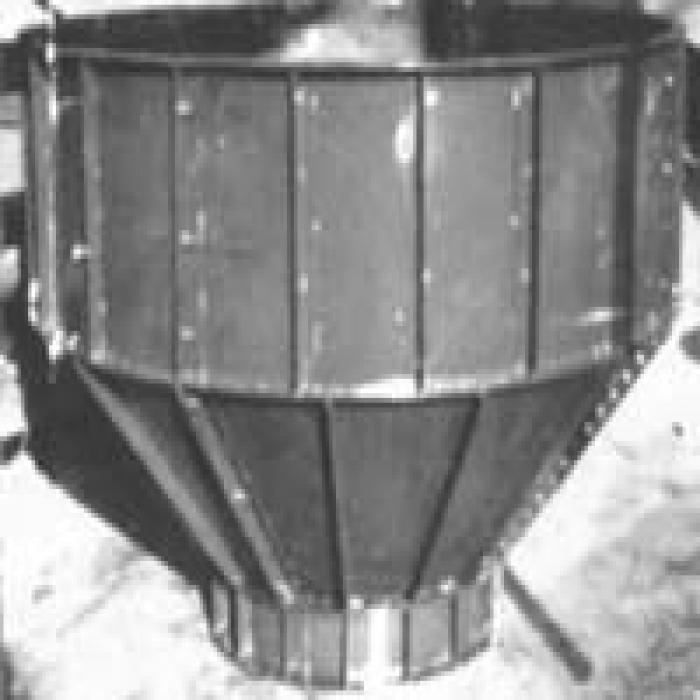

Purpose Made Formwork For Pier Cap

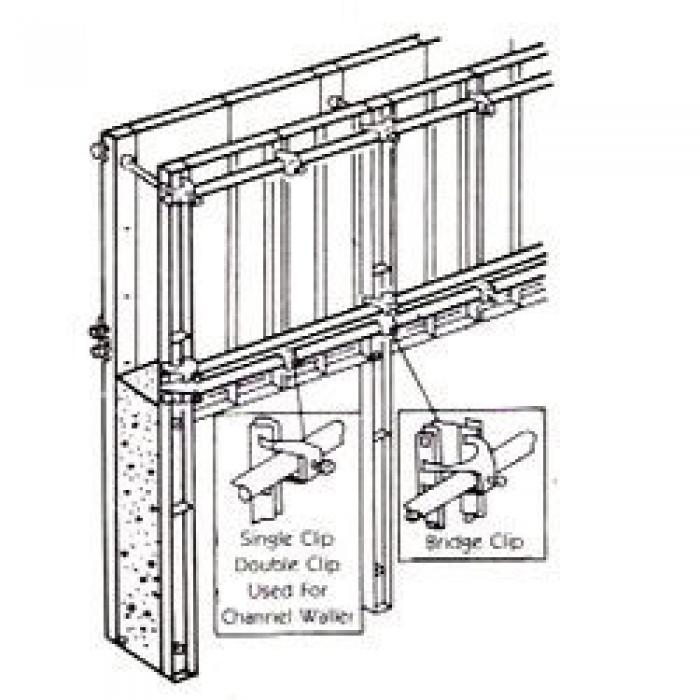

Conventional Wallform Shuttering

Consists of wallform panels made out of 12 gauge Sheet and M.S. Angel/Flat Frame, channel/ Heavy Duty Soldiers, Tubular/Channel walers & accessories. Panels supplied in 1.25m & Soldiers in 2.5m heights. For curved walls flexible panes are used, and heavy duty soldiers to be used in place of channel soldiers for single sided shuttering.

Double Adjuster Panel, Splay Panel, inter Corner Panel, External Corner Angle and Lap Angle etc., as also wallform accessories like Single clip, Double clip, Bridge clip, Assembly bolt and wedge / clip etc. are used for various applications of conventional wallform shuttering.

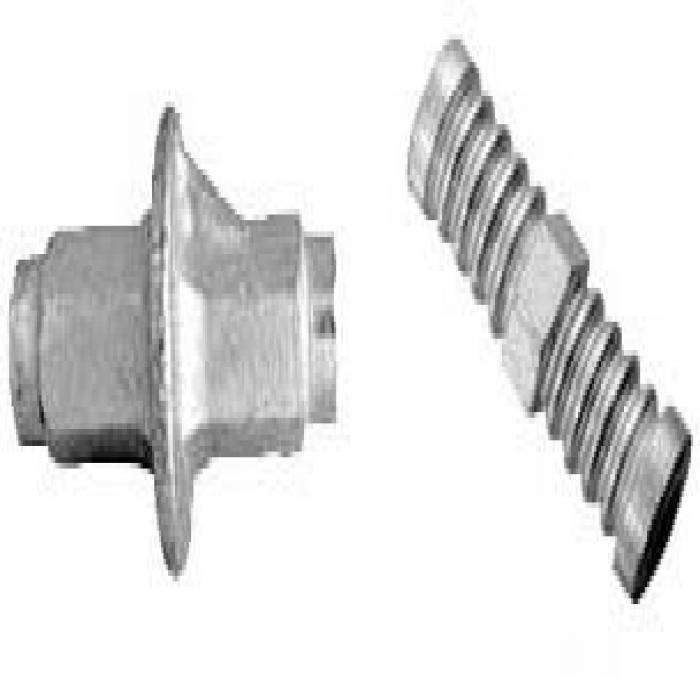

Water Stopper - With Disc/Without Disc

SIE water stopper is compatible with 17mm tie rods, for achieving water tight ties.Water stoppers are made from high quality casting and have a plastic caps at both ends, special feature is an additional surrounding disc for better Anchoring and further security against penetrating water. SIE water stoppers are optimal choice for contractors.

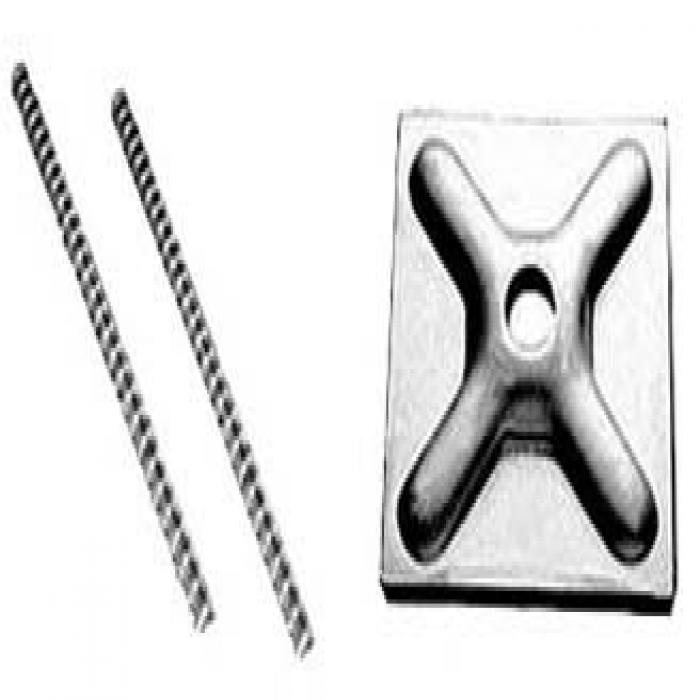

Tie Rod and Waller Plate/Counter Plates

SIE Counter Plate for typical tie bar application with wing nuts and tie rods. Reinforced design, made from steel. waller plates/Counter Plates are for use both with timber and steel framework. waller plates/Counter Plates are of square dimensions of 120x120mm, an opening hole to pass through tie rods and additional mailing holes for timber framework if required. waller plates/Counter Plates are available with or without galvanizing.

External Corner Angle

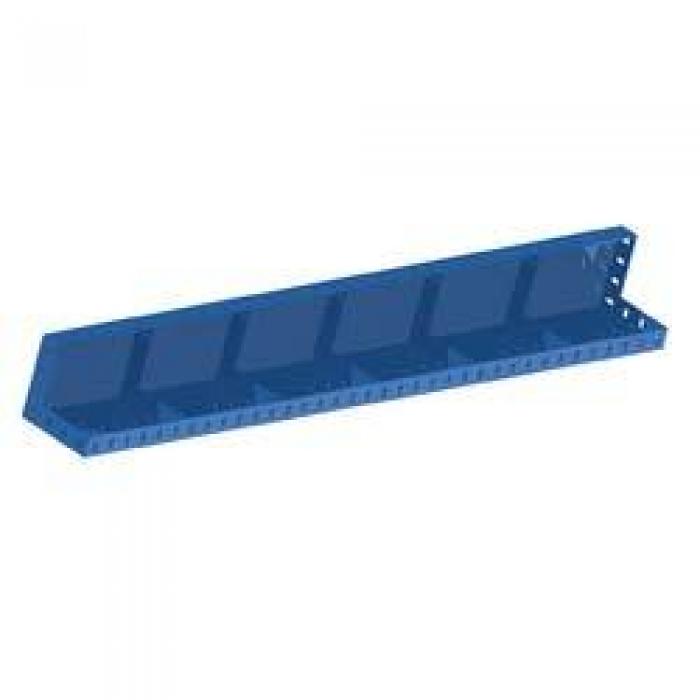

ICP's come in a full range of lengths forming internal corner between a drop beam and slab soffit as well as vertical corers.
Filler plates fill in gaps when using non-standard modules and facilitate stripping in confined areas.
