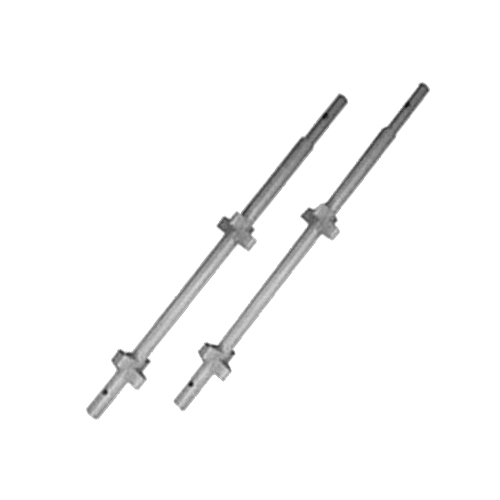

Quikwedge Standards / Verticals form the support or the uprights and are made from Standard Scaffold Tubes of 48.3 x 4 mm thick. With the latest innovations, they are also available in 48.3 X 3.25 mm. They have a series of "V" Pressed welded at nominal 500 mm on the tube to provide a location for ledger and transoms. They are also available with integral wedge spigots or as open ended.
| size | weight |
| 3 | 17.27 |
| 2.5 | 14.5 |
| 2 | 11.74 |
| 1.5 | 8.99 |
| 1.0 | 6.21 |

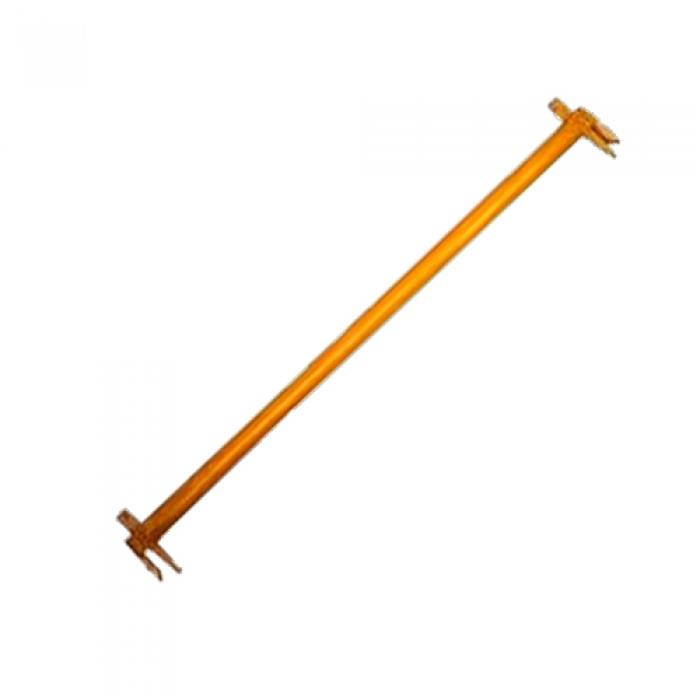

Quikwedge Ledger/Horizontal These items are made from the tube with the wedge-fixing device at each end. These are used to lie in the uprights or standards longitudinally. On the inside of the scaffold of the scaffold, they are used at platform level and on the outside as a guardrail.
| size | weight |
| 2.4 | 9.39 |
| 1.8 | 7.22 |
| 1.2 | 5.23 |

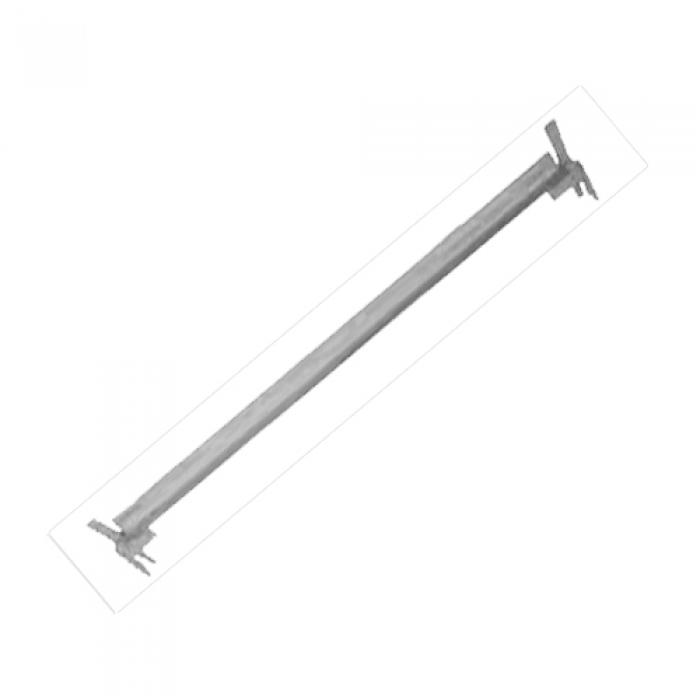

Quick wedge Transom They are a rolled "T" section with wedge fixing device on each ends. Also available with back to back angles of 50 x 50 x 5mm to form a "T" These transoms engaged with "V" pressing on the Standard/Verticals fixing the inner and outer standards transversely and forming a frame.
| size | weight |
| 1.2 | 9.8 |
| 0.7 | 6.3 |

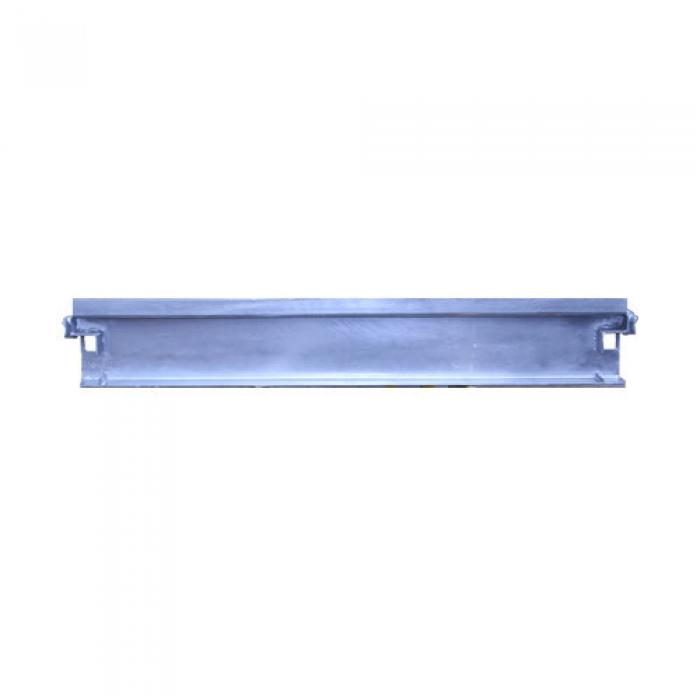

Quickwedge Return Transom Manufactured from a steel pressing shaped so that it can be placed over a Ledger to form a 90 degee return in the scaffold, the Return Transom has a seating on one side for Steelstage or Timber Battens.
| size | weight |
| 1.2 | 13.34 |

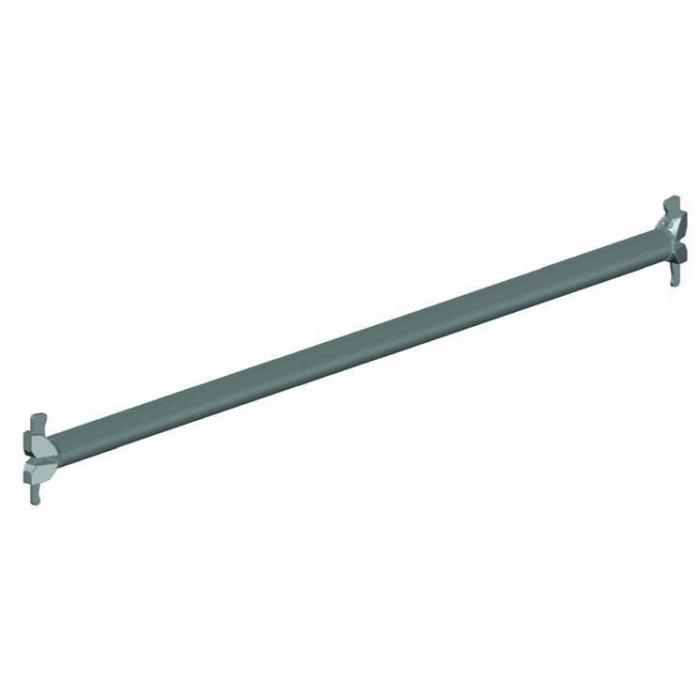

Scaffolding Bracing - Scaffolding Diagonal Brace has pivoting captive wedge fittings welded to each end, which locate the "V" pressing on the standards. Used to form facade bracing.
| size | weight |
| 3.5 | 13.52 |
| 2.1 | 7.98 |
| 1.7 | 6.73 |

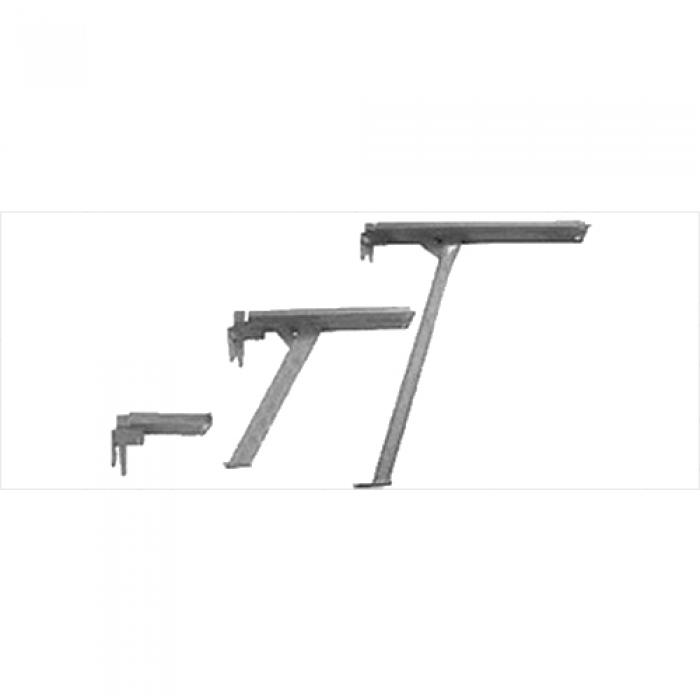

Stage Bracket 1/2/3 Board - One Board Stage Bracket enables an additional 255 mm platform to be provided on the inside of the scaffold. They do not require Tie Bars to connect them together. Available with rolled "T" Section or back to back welded angles. The Two and Three Board Stage Brackets enable an additional 450 mm (1’6") and 675mm (2’3") platform respectively to be provided on the inside of the scaffold nearest the building. Tie Bars must be used to connect the brackets together. They are available in both rolled section and back to back welded angle.
| size | weight |
| 3 Board | 11.80 |
| 2 Board | 6.53 |
| 1 Board | 2.29 |

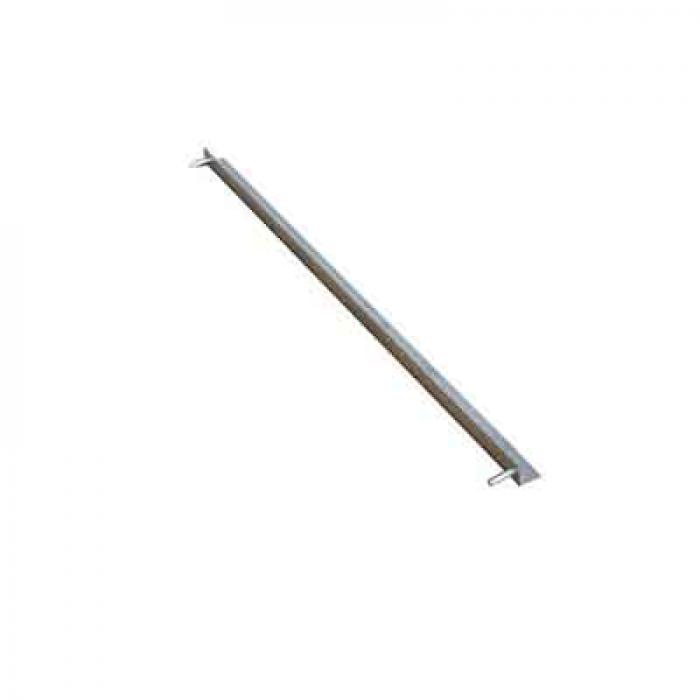

Tie Bar - A length of 40 mm x 40 mm angle iron with a dowl at both ends. Used to connect stage brackets together.
| size | weight |
| 2.4 | 5.86 |
| 1.8 | 4.42 |
| 1.2 | 3.06 |

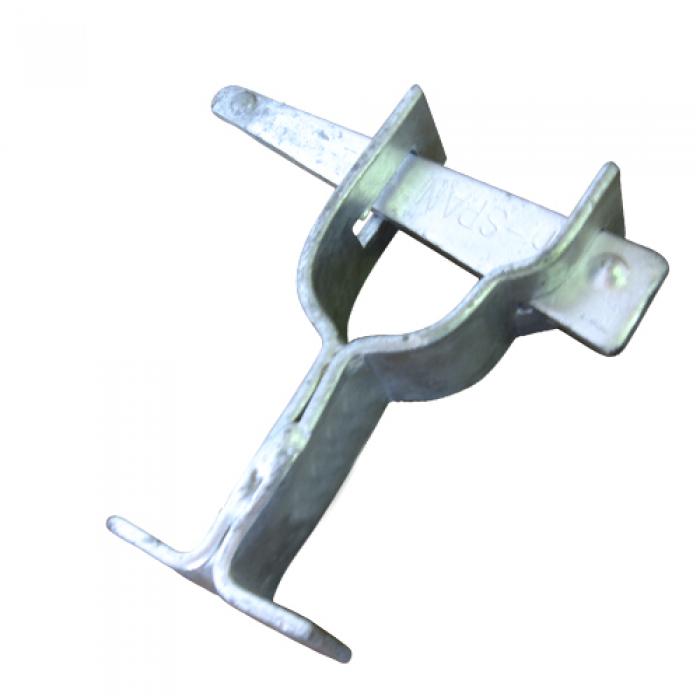

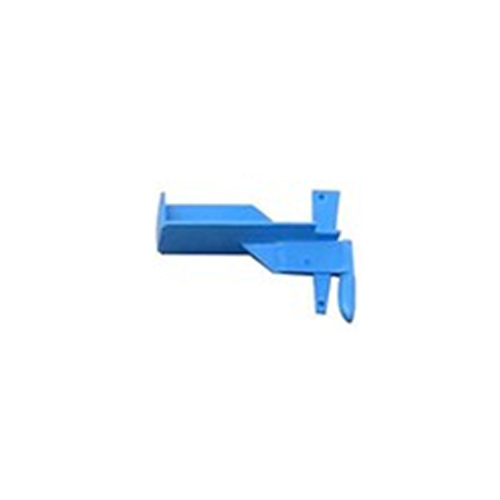

Toe Board Bracket - When clamped to standards at the end of the scaffold platform, the End Toe Board Bracket secures the end toe board, which can be either Steel stage or timber.
Backed by fair trade policies, we are engaged in offering the best quality array of End Toe Board Bracket.
| size | weight |
| End Toe Bracket | 2.10 |
